LED Cube

A tightly integrated embedded system consisting of a host processor, FPGA-based LED driving core, structured power domains, and external memory architecture to enable scalable and dynamic display experimentation for a cube consisting of matrix LED panels.

Basic Components

  • STM32 Host processor
  • FPGA LED driver core
  • External OSPI (XIP capable)
  • Partitioned power domains
  • Structured firmware boot flow
  • Clean and methodical PCB architecture
  • 6 HUB75 64x64 LED panels, 24,576 LEDs total

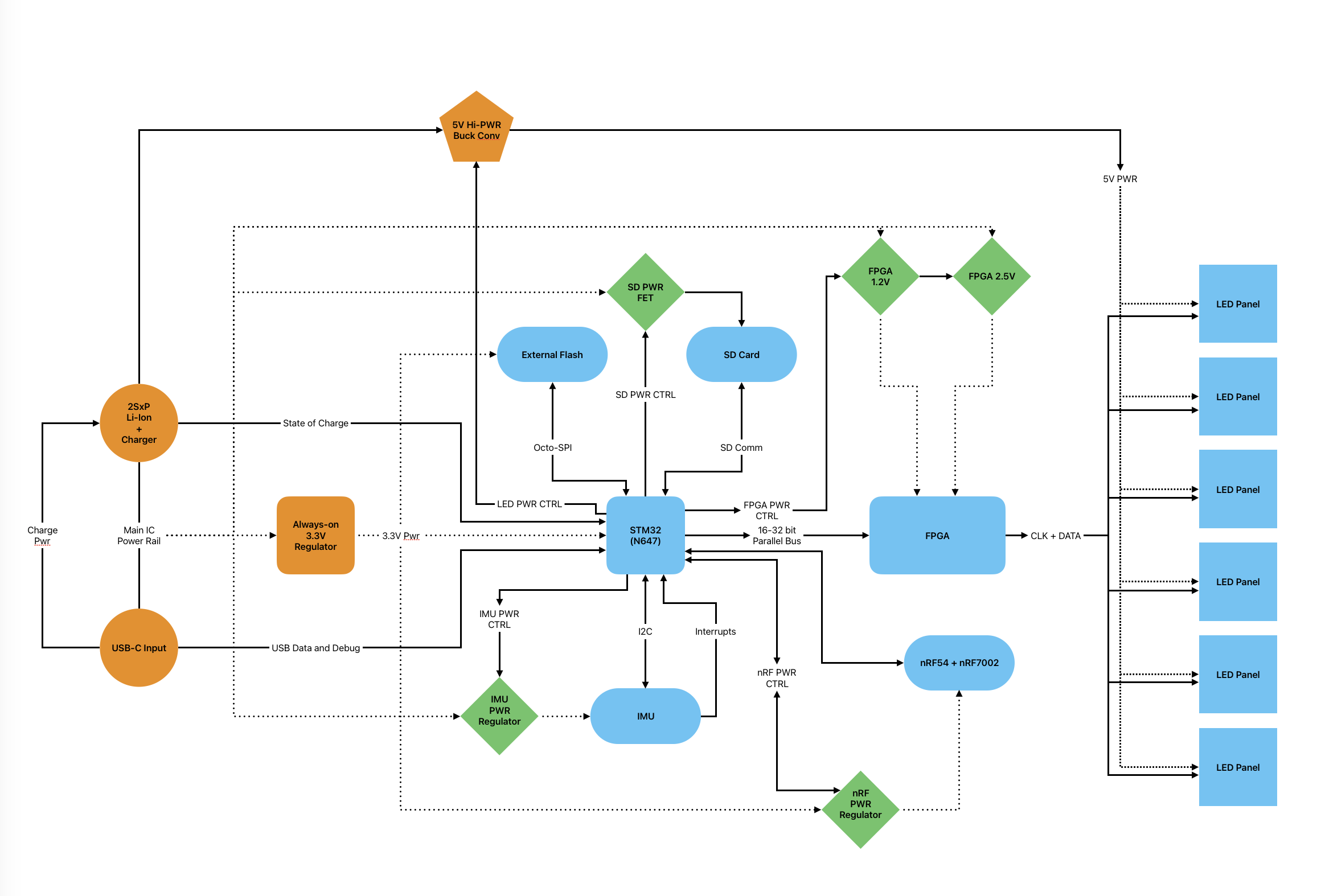

System Overview Diagram

System Overview System Overview

Design Philosophy

  • Separate components for frame generation and LED driving reduces the load on each component and allows for faster frame generation and pixel refresh.
  • A FPGA was chosen over individual components to maximize parallelism and reduce desync between neighboring panels.

System Layers

  • Hardware

    PCB architecture, STM32 host, FPGA interface, peripheral routing.

    Go to Hardware

  • Firmware

    Boot flow, memory map, system state control, hardware abstraction.

    Go to Firmware

  • FPGA

    LED scan engine, timing core, host communication interface.

    Go to FPGA

  • Power

    Multi-rail distribution, sequencing, regulation and protection.

    Go to Power

  • Mechanical

    Structural support, thermals, mechanical integration.

    Go to Enclosure

  • Manufacturing

    Fabrication outputs, assembly workflow, bring-up validation.

    Go to Manufacturing
